Refrigerator Shaded Pole Fan Motor

Short Description:


Product Detail

Product Tags

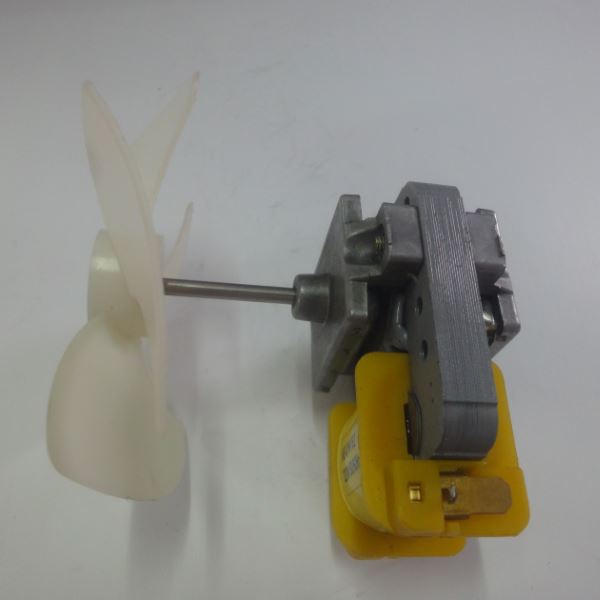

Refrigerator Shaded Pole Fan Motor

It is widely used in refrigerator,freezer,heater, humidifier and axial fan.High efficiency,less over heat.


Product Description

Model

WW-HY-RM-002(RE-01WT52)

Voltage

220-240V/110-120V

Frequency

50/60HZ

None-load speed

2500-2700rpm

Input power

8W

Output power

2W

Winding

Copper or mixing copper

Shaft diameter

4mm

Shaft length

40mm

Stator size

61*61mm

Stator thickness

10mm

Net weight

About 320g

Efficiency

<25%

Rotation

CCW/CW

Noise

<45dbs

Phase

Single-phase

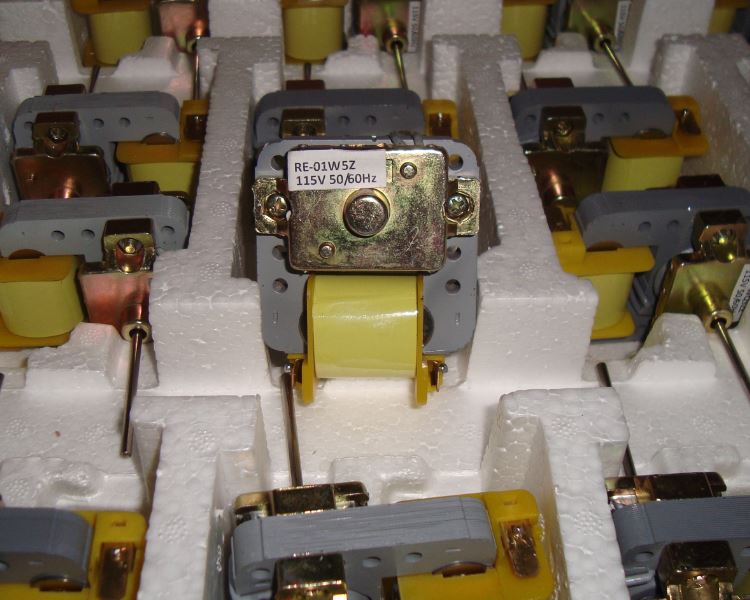

Package Information

Packing

Foam packing or with inner box

Packing quantity

40pcs/ctn

Carton size

48*39*16.5cm

G.W.

21kg

N.W.

20kg




Specialized in the quality refrigerator shaded pole fan motor manufacturing, Win-Win EA is one of the leading such manufacturers and suppliers in China, who can also offer you customized service. Welcome to wholesale refrigerator shaded pole fan motor made in China with us.
