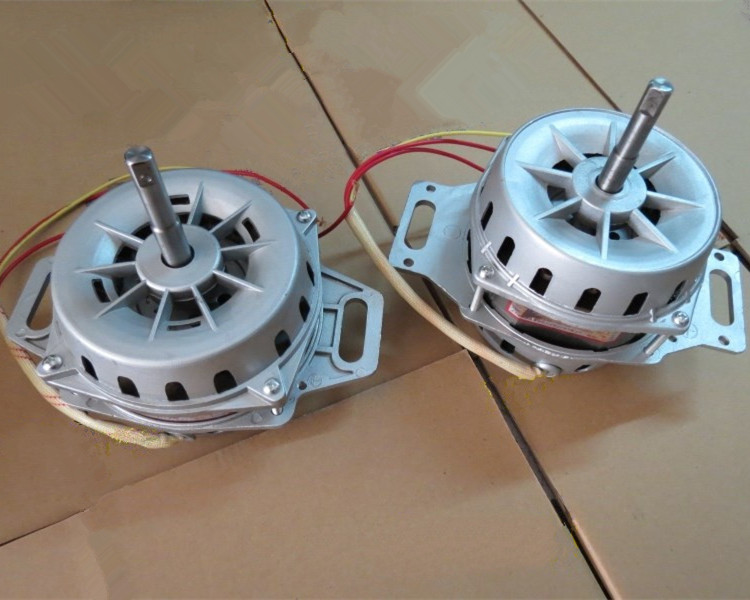

Full-Auto Washing Machine Motor

Short Description:


Product Detail

Product Tags

Quick Details

Type: Washing Machine Parts

Place of Origin: Zhejiang, China (Mainland)

Brand Name: WIN-WIN EA

Model Number: WW-HY-AWM-008

Winding: copper

Rated Voltage: 220-240V/110-120V

Rated Power Output: 150W

Rotation: CCW/CW

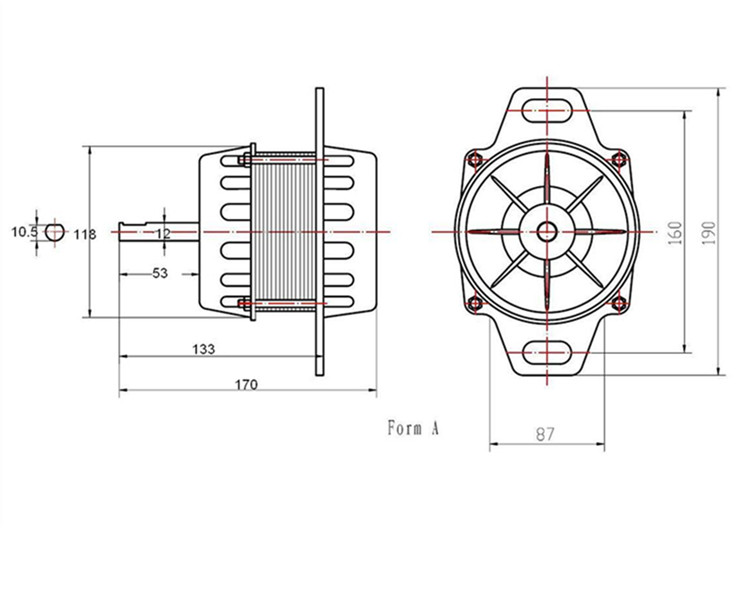

Stator thickness: 35mm

Shaft Diameter: 10/12mm

Shaft length: Based on customer requirement

Cover Material: Aluminum

Packing: 4pcs per carton or with inner box

Payment: 30% TT advance,70% before shipment


Packaging & Delivery

Packaging Details: 4pcs per carton,carton size:28*28*17.5 cm,NW/GW:10.5/12kg
Delivery Detail: 30-35 days after receive the deposit


Specifications:

Voltage 100V,110V,127V,220V,230V,240V
Frequency 50HZ,60HZ
Power 150W
Stator Lamination Silicon Steel Q195
Rotor Lamination Silicon Steel Q195
Rotor Endring Primary Ingot
Shaft Steel #45 OD:10/12MM
Cover Aluminum
Winding Copper
Insulation Class Class B Class E or Class F
Pole 4 or 6
Bearing Type Bush bearing or roll bearing
Noise <55db


Performance:

1.Strong overload performance

2.Fast startup

3.Long life

4.Smooth in operating




Delivery Information:

Sample days

5-7 days


MOQ

1000pcs/model


Production time

30-35 days(depends on the Qty) after receive the deposit


Packing details

Fit to exported standard, safe and strong,in cartons or in pallets

1) in cartons (4pcs/ctn) Qty/20GP: 6000pcs (1500 cartons)


Payment terms:

L/C at sight or T/T 30% deposit,and balance 70% before shipment


OEM

Welcome, we can produce according to your drawings.






Specialized in the quality full-auto washing machine motor manufacturing, Win-Win EA is one of the leading such manufacturers and suppliers in China, who can also offer you customized service. Welcome to wholesale full-auto washing machine motor made in China with us.
