Factory best selling Washing Machine Parts Price - Semi-Auto Washing Machine Motor – Win-Win Detail:

Quick Details

Brand Name: WIN-WIN EA

Model Number: WW-HY-SM-011

Type: Asynchronous Motor

Frequency: 50/60HZ

Output Power: 60W

Protect Feature: Totally Enclosed

Phase: Single-phase

Certification: CCC, CE, ROHS

AC Voltage: 208-230 / 240 V

Place of Origin: Zhejiang, China (Mainland)

Efficiency: IE 1

Winding: copper,mixing copper,aluminum

Rated Voltage: 220-240V/110-120V

Rated Power Output: 60W

Rotation: CCW/CW

Stator thickness: 22mm

Shaft Diameter: 10/12mm

Cover Material: Iron

Packing: 4pcs per carton or with inner box

Payment: 30%TT advance,70%before shipment

Delivery Time: 25-30days after receive the deposit


Packaging & Delivery

Packaging Details: 4pcs per carton,carton size:28*28*17.5 cm,NW/GW:10/11kg
Delivery Detail: 25-30 days after receive the deposit


Specifications:

Voltage 100V,110V,127V,220V,230V,240V
Frequency 50HZ,60HZ
Power 60W
Stator Lamination Silicon Steel Q195
Rotor Lamination Silicon Steel Q195
Rotor Endring Primary Ingot
Shaft Steel #45 OD:10MM/12MM
Cover Iron
Winding Copper/Aluminum/Copper clad aluminum wire
Insulation Class Class B Class E or Class F
Pole 4 or 6
Bearing Type Bush bearing or roll bearing
Noise <55db


Performance:

1.Strong overload performance

2.Fast start

3.Long life

Delivery Information:

1.Sample days

5-7 days

2.MOQ

1000pcs/model

3.Production time

25-30 days(depends on the Qty) after receive the deposit

Packing details:

Fit to exported standard, safe and strong cartons or in pallets

4pcs per carton or with inner box

1) in cartons (4pcs/ctn) Qty/20GP: 6000pcs (1500 cartons)

2) in pallets(180pcs/plt) Qty/40GP: 7200pcs (40 pallets)

3) in pallets (216pcs/plt) Qty/40HQ: 8640pcs (40 pallets)


Payment terms:

L/C at sight or T/T 30% deposit,and balance 70% before shipment.


OEM

Welcome, we can produce according to your drawings.





Specialized in the quality semi-auto washing machine motor manufacturing, Win-Win EA is one of the leading such manufacturers and suppliers in China, who can also offer you customized service. Welcome to wholesale semi-auto washing machine motor made in China with us.

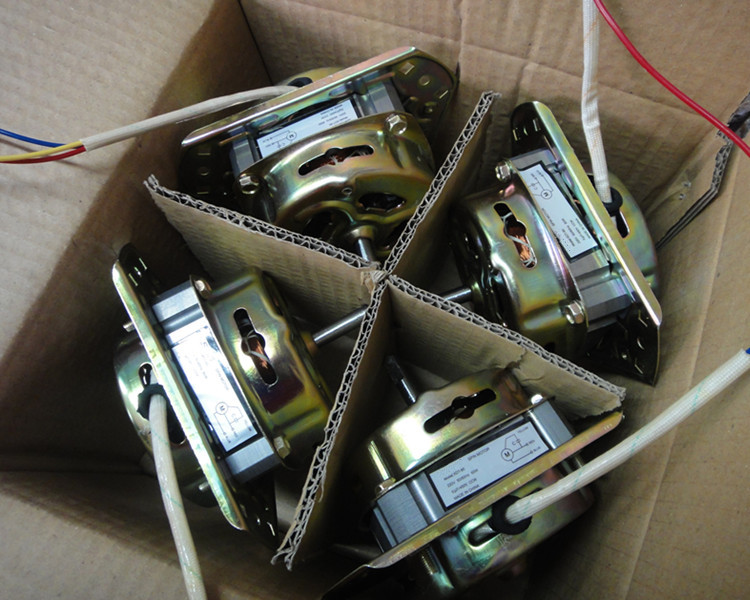

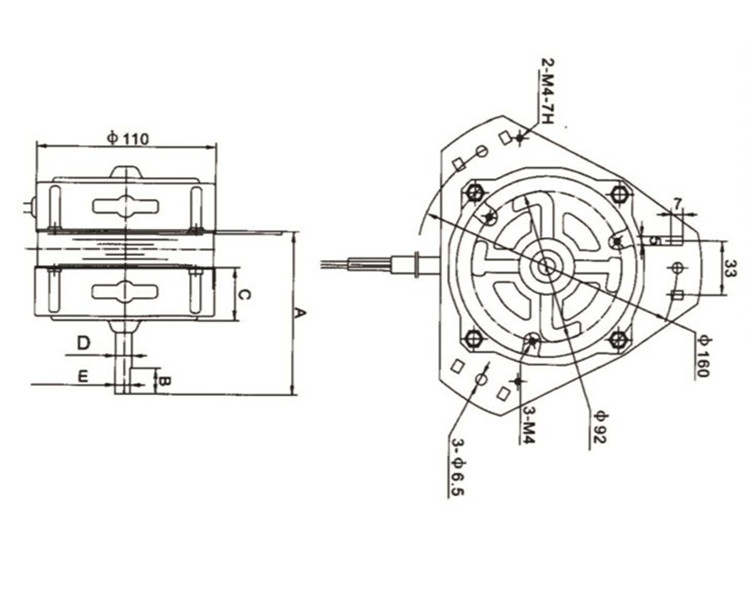

Product detail pictures:

Factory best selling Washing Machine Parts Price -
 Semi-Auto Washing Machine Motor – Win-Win detail pictures

Factory best selling Washing Machine Parts Price -
 Semi-Auto Washing Machine Motor – Win-Win detail pictures

Factory best selling Washing Machine Parts Price -
 Semi-Auto Washing Machine Motor – Win-Win detail pictures
