Air Conditioner Outdoor Fan Motor

Short Description:


Product Detail

Product Tags

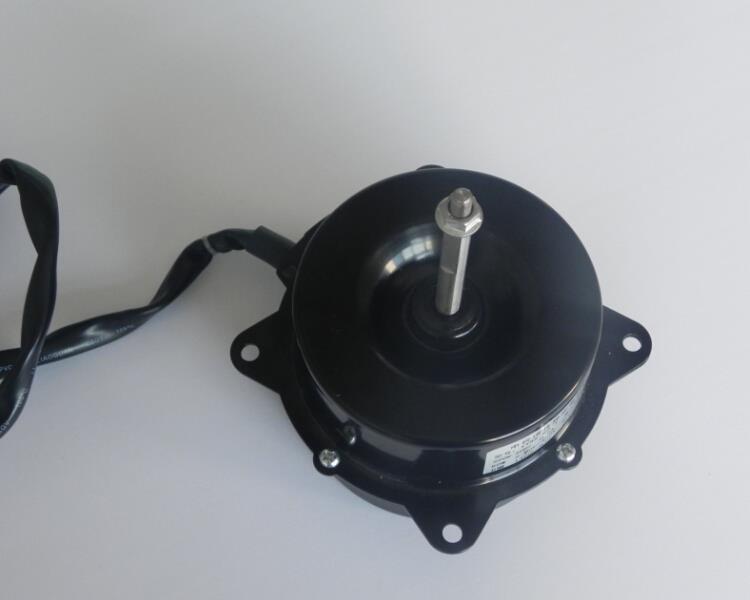

Air Conditioner Outdoor Fan Motor

It is mainly used in outdoor unit air conditioner,suit for 1P,1.5P and 2P air conditioners.With high efficiency,high reliability,less vibration and low noise.

Motor technical parameter


Model

Rated Voltage(V)

Rated Frequency(HZ)

Rated output power(W)

Rated speed(R/MIN)

Capacity(uf)

Noise(dB)

WW-HY-ACM-036-15

110/220

50/60

15

1350/600-800

2.0/1.5

≤42

WW-HY-ACM-036-20

110/220

50/60

20

1350/600-800

2.0/1.5

≤42

WW-HY-ACM-036-25

110/220

50/60

25

1350/600-800

2.5/2.0

≤42

WW-HY-ACM-036-30

110/220

50/60

30

1350/600-800

2.5/2.0

≤42

WW-HY-ACM-036-35

110/220

50/60

35

1350/600-800

2.5/2.0

≤42

WW-HY-ACM-036-45

110/220

50/60

45

1350/600-800

3.0/2.5

≤42

WW-HY-ACM-036-50

110/220

50/60

50

1350/600-800

3.0/2.5

≤42

WW-HY-ACM-036-60

110/220

50/60

60

1350/600-800

3.5/3.0

≤42





Package Information

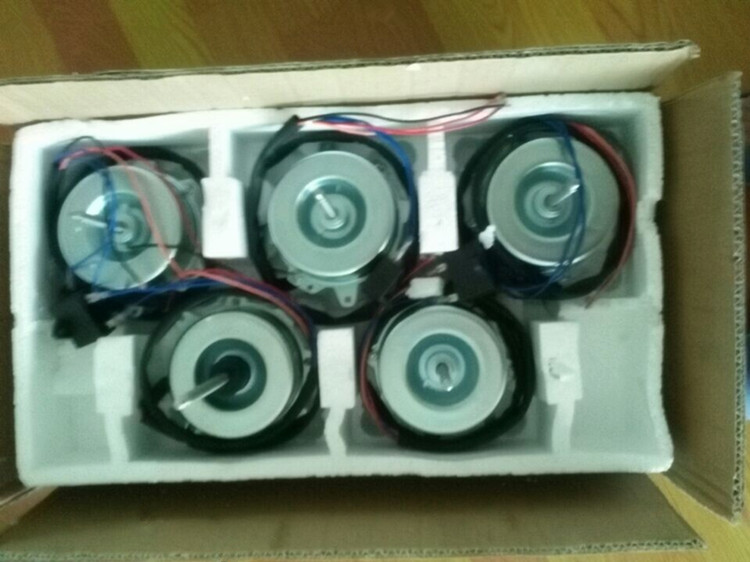

Packing

Carton with foam

Packing Quantity

5pcs

G.W.

10kg

N.W.

9kg




Specialized in the quality air conditioner outdoor fan motor manufacturing, Win-Win EA is one of the leading such manufacturers and suppliers in China, who can also offer you customized service. Welcome to wholesale air conditioner outdoor fan motor made in China with us.
