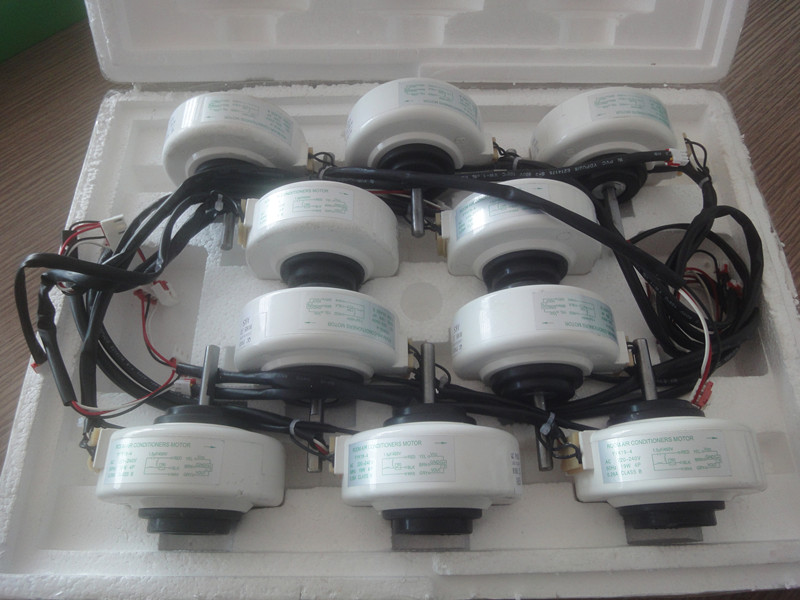

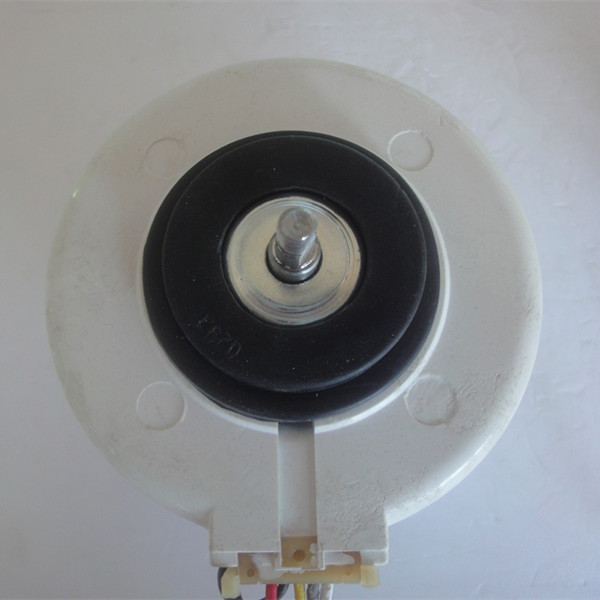

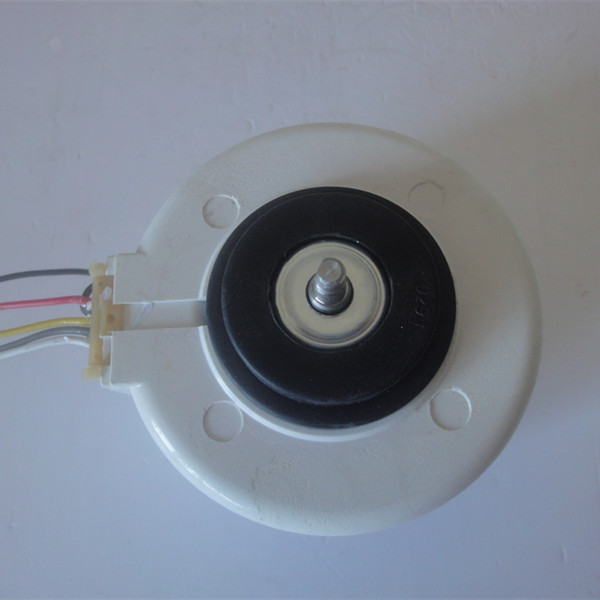

Air Conditioner Indoor Fan Motor
Short Description:
Technical Parameter
| Model |
Output Power (w) |
Voltage (v) |
Frequency (HZ) |
Current (A) |
Pole (p) |
Speed (rpm) |
Capacitor |
Insulation class |
Efficiency |
|
WW-HY-6 |
6 |
220 |
50/60 |
0.13 |
4 |
800-1200 |
0.6uf |
B |
22% |
|
WW-HY-10 |
10 |
0.15 |
800-1300 |
1.0uf |
25% |
||||
|
WW-HY-12 |
12 |
0.15 |
800-1500 |
1.2uf |
22% |
||||
|
WW-HY-15 |
15 |
0.21 |
1300/1150/1000 |
1.2uf |
30% |
||||
|
WW-HY-16 |
16 |
0.23 |
800-1500 |
1.2uf |
28% |
||||
|
WW-HY-19 |
19 |
0.23 |
800-1500 |
1.5uf |
30% |
||||
|
WW-HY-20 |
20 |
0.25 |
800-1300 |
1.2uf |
35% |
||||
|
WW-HY-22 |
22 |
0.28 |
800-1500 |
2uf |
32% |
||||
|
WW-HY-25 |
25 |
0.28 |
800-1300 |
1.5uf |
40% |
Product Features
| It is used for 2P,3P,4P split type indoor air conditioner |
|
It adopts high quality thermosencapsulation materials |
|
It can control motor speed,but need be supported by a PCB in the machine |
|
Little libration, low noise, high efficiency |
Specialized in the quality air conditioner indoor fan motor manufacturing, Win-Win EA is one of the leading such manufacturers and suppliers in China, who can also offer you customized service. Welcome to wholesale air conditioner indoor fan motor made in China with us.
